Developer Guide

Table of Contents

• Acknowledgements
• Design & implementation
  • Architecture Overview
  • Command Execution Flow
  • Key Design Patterns
  • Design Details
    • Command Component
    • Model Component
    • Review Management Component
    • Rating Management Component
    • Score Management Component
    • Grade Management Component
• Implementation Details
  • Show Timetable Feature
  • Reset Timetable Feature
  • Find Review Feature
  • Review Counting Feature
  • Review Data Persistence (ExitSaveManager)
  • Review Data Synchronization (Manual)
  • Review Data Management (Reload/Reset)
  • Insert Module Feature
  • Filter Module Feature

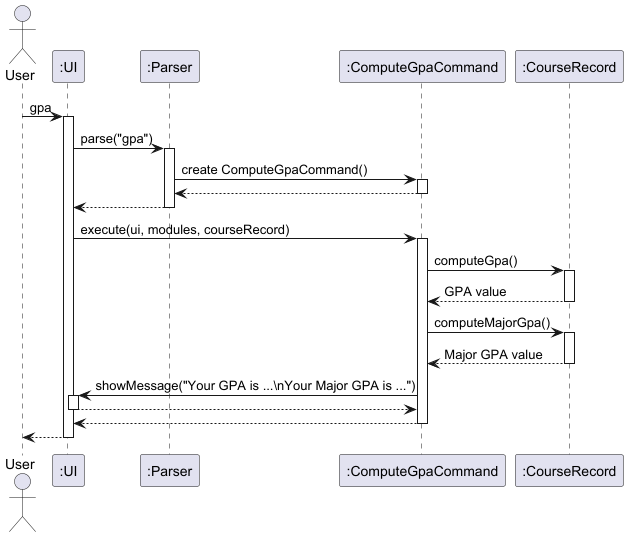

  • GPA Calculation Feature
  • Projected GPA Feature
  • Grade Management Commands
  • Score Breakdown Feature
  • Rating Feature
  • Timetable Clash Detection
• Product scope
  • Target user profile
  • Value proposition
• User Stories
• Non-Functional Requirements
• Glossary
• Instructions for manual testing
  • Setting up the application
  • Testing Module Management
  • Testing Filtering
  • Testing Grade Management
  • Testing Score Breakdown
  • Testing Review System
  • Testing Rating System
  • Testing Timetable Commands
  • Testing Error Handling
  • Data Persistence Testing

Acknowledgements

• Java 17 - Programming language and runtime environment
• JUnit 5 - Testing framework for unit tests
• Markdown - Documentation format

Design & implementation

Architecture Overview

Uniflow is a command-line application designed to help students manage their university modules, timetables, grades, and course reviews. The application follows an object-oriented design with clear separation of concerns.

The architecture diagram above shows the high-level design of the application. The main components are:

Uniflow (Main Class)

• Entry point that initializes core components and runs the main command loop
• Exposes shared singletons (e.g., getScoreManager()) to commands.

UI (User Interface)

• Handles all user interactions, reading commands via Scanner and displaying formatted results

Parser

• Parses user input strings into Command objects
• Validates command syntax and throws UniflowException for invalid commands

Command (Abstract Class)

• Base class for all command types using the Command Pattern
• Defines execute() method and isExit() to control application flow

Module

• Represents a scheduled module with ID, name, day/time, session type, and optional score breakdown
• Provides methods to check for tutorials and retrieve module information

ModuleList

• Manages the collection of modules in the timetable
• Provides add, delete, filter operations and detects timetable clashes

Course

• Represents a completed course with code, credits, grade and indication of whether it is a major required course

CourseRecord

• Manages a list of courses for academic record keeping
• It includes two separate lists, one for all courses, one for major-required courses
• It includes methods for computing the GPA of the courses stored in the record

GradeStorage

• It deals with loading and saving of the grade record in the data/grades.txt file.

ReviewManager

• Manages course reviews in-memory using a Map. Now operates in a “RAM-first” model.

ReviewStorage

• Handles the low-level reading and writing of review data to the data/reviews.txt file.

ExitSaveManager

• New component that detects unsaved in-memory reviews during a graceful shutdown (via bye command) and prompts the user (yes/no) to persist them.

RatingManager

• Manages course ratings from students, storing ratings in a map by module code.

RatingStats

• Represents the aggregate statistics (sum, count, average) for a specific course’s ratings.

RatingStorage

• Handles persistence of rating data to the local file system using pipe-delimited format.

ScoreManager

• Orchestrates in-memory map <MODULE_CODE: {component: value}> and persistence.

ScoreStorage

• Handles persistence of score data to the local file system using pipe-delimited format.

Command Execution Flow

The following workflow diagram illustrates the complete command execution flow in Uniflow:

Workflow Steps:

1. User enters a command string through the UI Scanner The UI component reads the input from the console.
2. Parser analyzes the input and creates the appropriate Command object It performs syntax validation and throws a UniflowException for invalid commands.
3. Command’s execute() method is called with core data managers:
   • ModuleList - timetable and active semester modules.
   • CourseRecord - completed courses for GPA tracking.
   • ReviewManager, RatingManager, and ScoreManager - in-memory feature managers.
4. Command performs its operation:
   • ModuleList operations: insert, delete, list, filter, show timetable, reset timetable and clash detection.
   • CourseRecord operations: addgrade, gpa, and related grade persistence through GradeStorage.
   • ReviewManager operations: addreview, review, findreview, and review persistence through ReviewStorage.
   • RatingManager operations: rate (add/view module ratings), persistence through RatingStorage.
   • ScoreManager operations: score (add/view module breakdowns) persistence through ScoreStorage.
5. Data managers update in-memory structures and trigger persistence where needed:
   • ModuleStorage for timetable data.
   • GradeStorage for GPA records.
   • ScoreStorage, ReviewStorage, RatingStorage for feature-specific data.
6. UI outputs feedback to the user: confirmation messages, GPA summaries, filtered module lists, average ratings, or score breakdowns.
7. Loop continues until the user enters bye. When Command.isExit() returns true, the main loop terminates.
8. Loop continues until the user enters bye. When Command.isExit() returns true, the main loop invokes the ExitSaveManager.
9. ExitSaveManager checks for unsaved reviews by comparing memory (ReviewManager) to the file (ReviewStorage).
   • If differences are found, it prompts the user (yes/no) to save them.
   • If “yes”, the new reviews are merged and saved to disk.
10. Application terminates gracefully.

Key Design Patterns

Command Pattern

Every user action (e.g., insert, delete, filter, rate, score, addgrade, review) is implemented as a subclass of the abstract Command class. Each command encapsulates its own logic and implements execute(), allowing new features to be added without modifying existing code. This pattern isolates user actions, improving extensibility and testability.

Separation of Concerns

The system is divided into three logical layers:

• Parser/Command Layer: Handles command parsing and user intent.
• Manager Layer: Handles business logic (e.g. ReviewManager, RatingManager, ScoreManager).
• Storage Layer: Handles data persistence (ReviewStorage, RatingStorage, ScoreStorage, ModuleStorage, GradeStorage). This design ensures that UI, logic, and persistence can evolve independently.

Data Persistence Pattern (Storage Abstraction)

Each major feature has a dedicated storage class that implements standardized load/save operations using simple delimited formats. This keeps data handling consistent across modules (e.g., adata/modules.txt, data/scores.txt, data/ratings.txt).

Singleton-like Access

Global components a(ReviewManager, RatingManager, ScoreManager, CourseRecord, and ModuleList) are instantiated once and referenced through the Uniflow class. This ensures a consistent shared state across commands while avoiding tight coupling.

Predicate-Based Filtering

ModuleList uses Java’s Predicate functional interface for dynamic filtering (e.g., by day, session type, or tutorial presence). This makes it easy to extend filtering criteria without changing the base logic.

User-Controlled Persistence (RAM-First Model)

The review system operates in a “RAM-first” model. All changes (addreview, editreview, deletereview) modify data in memory only. This improves performance by eliminating disk I/O on every command. Persistence to disk is now explicitly controlled by the user via:

• The load reviews command (which prompts to merge changes).
• The add reviews database command (for a manual merge/save).
• The ExitSaveManager (which prompts to save on graceful exit).

Design Details

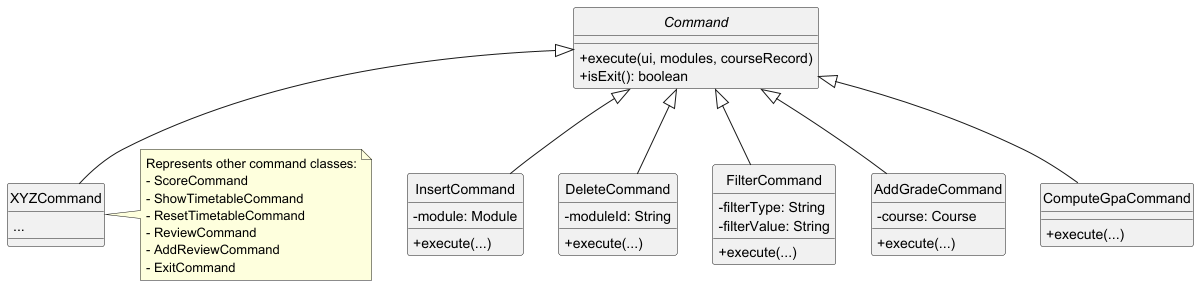

Command Component

The Command component uses the Command Pattern to encapsulate each user action as an object. This design allows for:

• Easy addition of new commands without modifying existing code
• Consistent interface for all command types
• Clear separation of command parsing and execution logic

All command classes inherit from the abstract Command class and implement the execute() method. This includes new commands such as FindReview, CountReviewsCommand, LoadReviewsCommand, ResetReviewsCommand, AddReviewsDatabaseCommand, ShowTimetableCommand, and ResetTimetableCommand.

Model Component

The Model component consists of:

• Module: Represents a course session with timing and session type information. Each module can store a score breakdown for different assessment components.
• ModuleList: Manages a collection of modules with operations for adding, deleting, filtering, and clash detection.
• Course: Represents a course with a grade, used for GPA calculation.
• CourseRecord: Manages the collection of courses.

The use of composition relationships allows ModuleList and CourseRecord to fully manage their respective collections.

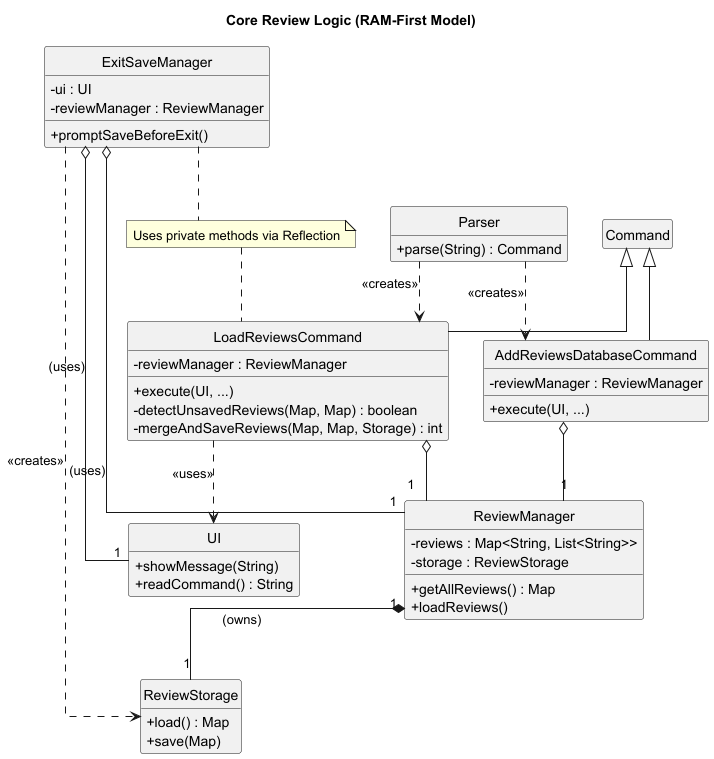

Review Management Component

The Review Management component was refactored to a “RAM-first” architecture, separating in-memory logic from user-controlled persistence.

• ReviewManager: Manages the in-memory Map of reviews. It no longer automatically saves on add, edit, or delete. It provides methods like getAllReviews() and loadReviews() for persistence commands. It includes a fallback to “RAM-only” mode if the file is unreadable.
• ReviewStorage: A utility class responsible only for file I/O (reading and writing the reviews.txt file).
• Persistence Commands: LoadReviewsCommand and AddReviewsDatabaseCommand orchestrate the merging of data between ReviewManager and ReviewStorage.
• ExitSaveManager: A new component that uses ReviewManager and ReviewStorage to detect unsaved changes and prompt the user (yes/no) before the application closes via the bye command.

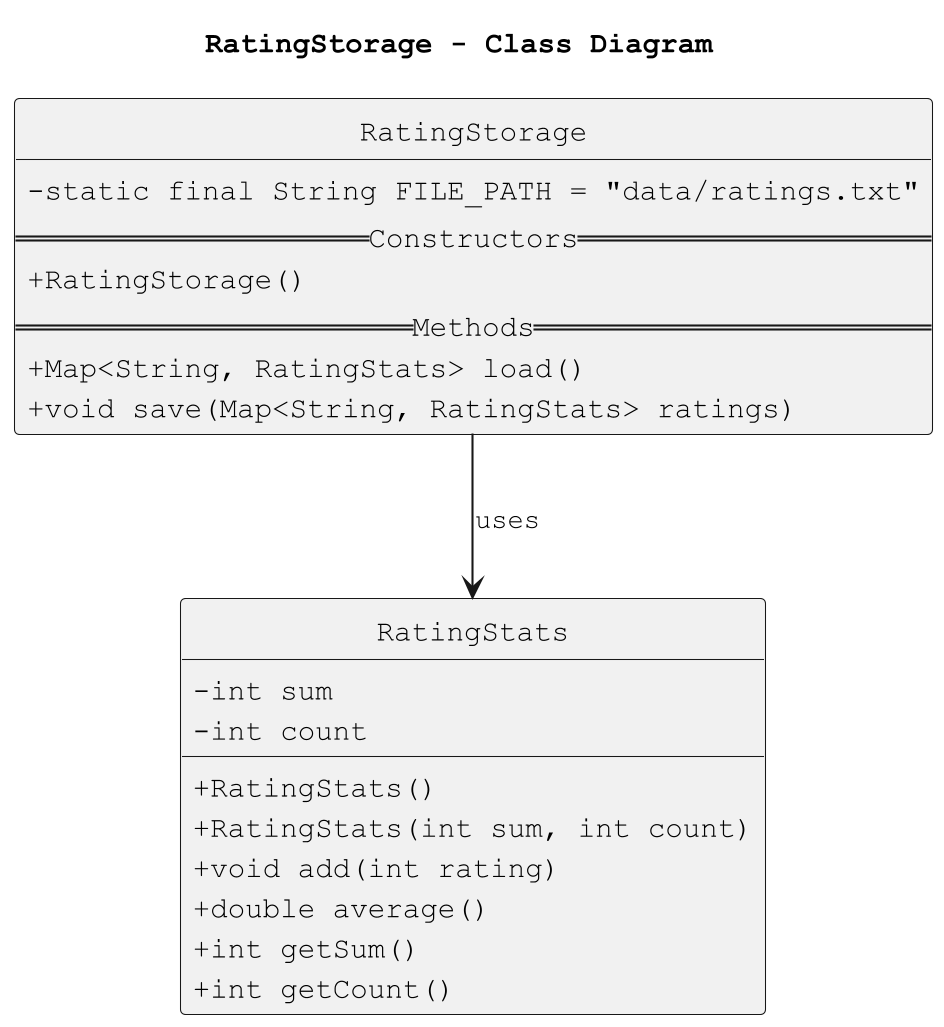

Rating Management Component

The Rating Management component enables users to rate modules and view average ratings for each course. It follows the same architecture as Review Management, with a clear separation between logic, data and persistence layers.

• RatingManager - Maintains a Map<String, RatingStats> mapping module codes to their cumulative rating data.
  • It handles all business logic for adding, updating, and retrieving ratings, ensuring each rating is between 1-5.
• RatingStats - A helper class encapsulating statistics:
  • sum: total of all rating values.
  • count: number of ratings.
  • average: computed dynamically as sum/count
• RatingStorage - Manages persistence of rating data to data/ratings.txt using a pipe-delimited format.
  • Each line represents one record: MODULE_CODE|SUM|COUNT
  • Ratings are automatically reloaded at application start and saved on exit or when a new rating is added.

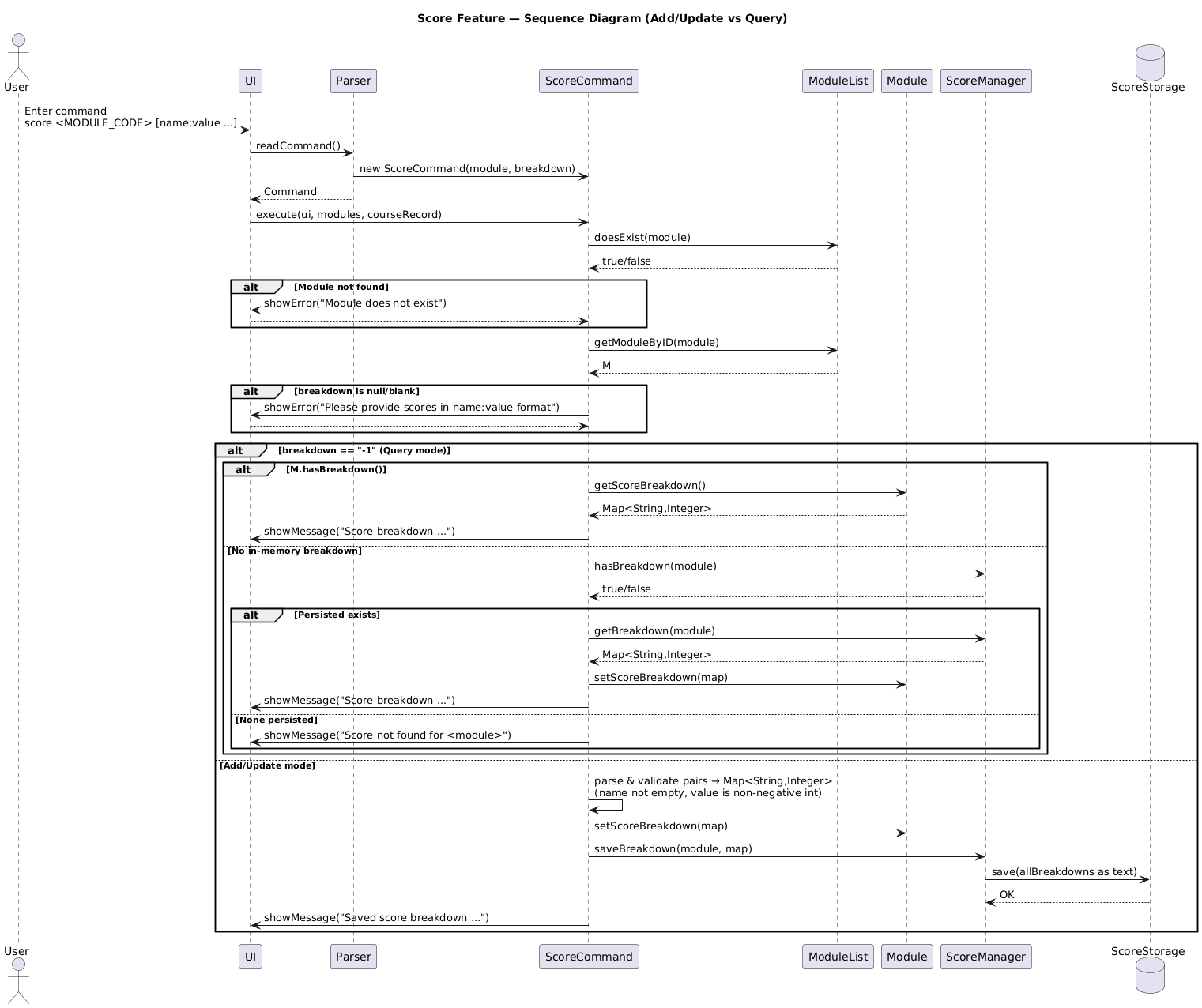

Score Management Component

The Score Management component allows users to store and view assessment breakdowns for individual modules. It is designed around the same modular architecture as the Review and Rating systems.

• ScoreManager - Manages a Map<String, Map<String, Integer>> representing each module’s breakdown, where the key is a component name (e.g., "exam", "project") and the value is a score weight. Provides methods to:
  • Add or update a module’s breakdown
  • Retrieve existing breakdowns
  • Validate format and numeric values
• ScoreStorage - Persists breakdown data to data/scores.txt in the following format: MODULE_CODE|name:value|name2:value2|.. Handles both loading and saving, ensuring file data remains synchronized with the in-memory state.

Rating Management Component

The Rating Management component enables users to rate modules and view average ratings for each course. It follows the same architecture as Review Management, with a clear separation between logic, data and persistence layers.

• RatingManager - Maintains a Map<String, RatingStats> mapping module codes to their cumulative rating data.
  • It handles all business logic for adding, updating, and retrieving ratings, ensuring each rating is between 1-5.
• RatingStats - A helper class encapsulating statistics:
  • sum: total of all rating values.
  • count: number of ratings.
  • average: computed dynamically as sum/count
• RatingStorage - Manages persistence of rating data to data/ratings.txt using a pipe-delimited format.
  • Each line represents one record: MODULE_CODE|SUM|COUNT
  • Ratings are automatically reloaded at application start and saved on exit or when a new rating is added.

Score Management Component

The Score Management component allows users to store and view assessment breakdowns for individual modules. It is designed around the same modular architecture as the Review and Rating systems.

• ScoreManager - Manages a Map<String, Map<String, Integer>> representing each module’s breakdown, where the key is a component name (e.g., "exam", "project") and the value is a score weight. Provides methods to:
  • Add or update a module’s breakdown
  • Retrieve existing breakdowns
  • Validate format and numeric values
• ScoreStorage - Persists breakdown data to data/scores.txt in the following format: MODULE_CODE|name:value|name2:value2|.. Handles both loading and saving, ensuring file data remains synchronized with the in-memory state.

Grade Management Component

The Grade Management component allows users to record, display their academic grades, and compute their GPA.
It combines the use of the CourseRecord and GradeStorage classes for GPA calculation, temporary grade testing, and grade persistence.

CourseRecord: Two lists of CourseRecord in Uniflow— one for confirmed grades (will be saved) and one for temporary predicted grades used in projection. Responsible for computing GPA.
Remark: tempRecord in Uniflow.java stored the predicted grades temporarily.

GradeStorage: Handles loading and saving of grade record in data/grades.txt, ensuring persistence between sessions.

• completed courses will be stored in the format:
  EC3322 | 5 | B | 1
• When the user uses Uniflow again, it will read the stored data and load the saved course records.

Some of the Commands Implemented:

AddGradeCommand – Adds a completed course’s grade.
ShowGradeCommand – Displays all saved grades.
RemoveGradeCommand – Deletes a grade record.
AddTestGradeCommand, RemoveTestGradeCommand – Manage predicted grades and projected GPA.
ProjectGpaCommand – Combines attained grades and predicted grades to calculate projected GPA.

Design Rationale: Separate handling for predicted grades allows users to explore a projected GPA simulation safely without overwriting confirmed academic record.

Implementation Details

Find Review Feature

The find review feature allows users to search the in-memory review list.

1. Parser creates a FindReview command with the user and/or course arguments.
2. The command calls reviewManager.getReviews() or reviewManager.getAllCourseIds() to fetch the current in-memory data.
3. It filters this data based on the provided arguments (user, course, or both).
4. The filtered results are passed to the UI for display.

Review Data Persistence (ExitSaveManager)

To prevent data loss on graceful exit, a user-prompted save mechanism is implemented, replacing the previous automatic shutdown hook.

1. When the user types bye, the main loop in Uniflow.java detects c.isExit() == true.
2. It instantiates the new ExitSaveManager and calls promptSaveBeforeExit().
3. ExitSaveManager loads both file data (ReviewStorage.load()) and memory data (reviewManager.getAllReviews()).
4. It detects if there are any reviews in memory that are not present in the file.
5. If differences exist, it uses the UI to ask the user: “You have unsaved reviews… (yes/no)”.
6. If the user replies “yes”, it merges and saves the new reviews to the file.
7. This component uses Java Reflection to access private helper methods in LoadReviewsCommand (detectUnsavedReviews, mergeAndSaveReviews) to avoid code duplication.

Review Data Management (Reload/Reset)

The commands for managing the review state were updated for the “RAM-first” model.

• LoadReviewsCommand: This command (load reviews) first checks for unsaved in-memory changes (by comparing memory to the file).
  • If unsaved changes are found, it prompts the user (“yes/no”) to merge them into the file before reloading.
  • After the optional merge, it clears the in-memory ReviewManager and reloads all reviews from ReviewStorage.
• ResetReviewsCommand: This command (reset all reviews) now only affects memory.
  • It calls reviewManager.clearAll(), wiping the in-memory review list.
  • It does not modify the data/reviews.txt file, allowing users to clear their session for testing.

Review Data Synchronization (Manual)

A new command was added for explicit, user-controlled synchronization.

• AddReviewsDatabaseCommand: This command (add reviews database) provides a way to manually save progress.
  • It performs a one-way merge, adding any reviews from memory into the file.
  • It does not clear memory and does not ask for confirmation.
  • This allows the user to save their work without exiting or reloading.

Review Counting Feature

• CountReviewsCommand: This new command (amount reviews) allows the user to count the number of reviews currently loaded in memory.
  • It uses the same parsing logic as findreview to support counting by user (u/USER), by course (c/COURSE), or both.

Show Timetable Feature

• The ShowTimetableCommand (show timetable) was implemented to provide a clean, formatted view of all modules.
• It iterates through the ModuleList and uses UI to display all module details, including ID, name, day, time, and session type, offering a more readable alternative to the list command.

Reset Timetable Feature

• The ResetTimetableCommand (reset timetable) was implemented to clear all modules from the ModuleList.
• It calls modules.clear() and provides user feedback via the UI.

Insert Module Feature

The insert module feature allows users to add modules to their timetable with automatic clash detection.

How the insert feature works:

1. Parser creates an InsertCommand with a new Module object
2. InsertCommand checks for timetable clashes by calling findClash()
3. If a clash is detected, the user is warned and asked for confirmation
4. If no clash exists or the user confirms, the module is added to ModuleList
5. A success message is displayed showing the updated module count

The clash detection algorithm compares time ranges on the same day using Java’s LocalTime class to determine if any overlap exists.

Filter Module Feature

The filter feature allows users to search modules using various criteria.

How filtering works:

1. Parser creates a FilterCommand with the filter type and value
2. FilterCommand calls the appropriate filter method on ModuleList
3. ModuleList uses predicate-based filtering to create a new filtered list
4. The filtered results are displayed to the user

The application supports filtering by: day, session type, module ID, module name, and tutorial presence. The predicate-based approach allows for flexible and extensible filtering logic.

GPA Calculation Feature

The GPA calculation feature computes the cumulative GPA based on completed courses.

How GPA calculation works:

1. Execution of gpa command will call the computeGpa() method in CourseRecord.
2. For each course, the letter grade is converted to a grade point (A+ = 5.0, B+ = 4.0)
3. The total_grade_points is calculated: Σ(grade_point × credits)
4. GPA = total_grade_points / total_credits
5. The result is displayed with summary statistics (e.g. the number of courses and credits studied)

The grade point conversion follows the standard NUS grading scale.

Projected GPA Feature

The projected GPA feature allows users to simulate their projected GPA result based on predicted grades of future courses.

How it works:

1. The user enters their predicted grades of not yet completed courses using
   addtestgrade c/COURSE_CODE cr/NUMBER_OF_CREDITS g/GRADE m/IS_MAJOR.
2. These will be stored in a temporary course record list.
3. projectgpa command combined the courses from permanent and temporary records and compute a projected GPA.
4. The result shows the projected overall GPA based on the predictions.

This feature helps students plan ahead and understand how their upcoming courses’ performances impact their GPA.
The temporary record will not be saved as permanant record and is just for testing in this execution.

Grade Management Commands

The following commands are used to facilitate the management and organisation of the course record.

showgrade – Displays the completed courses and allows users to track what is stored.
removegrade INDEX – Deletes a course grade from the permanent record by user-specified index.
showtempgrade – Displays the predicted grades currently stored in a temporary record, allowing users to track their current inputs. removetempgrade INDEX – Deletes a predicted grade from the temporary record.

Input Validation: All command inputs will be checked to ensure validity. Invalid input will cause a UniflowException that displays a reminder to users.

Score Breakdown Feature

Stores per-module assessment breakdowns like exam:50 project:30

How the score feature works:

1. Parser validates score <MODULE_CODE> [name:value ...].
   • No args after code ⇒ query mode (show existing breakdown).
   • Robust checks: non-empty pairs, : present, numeric non-negative values, whitespace/commas normalized.
2. ScoreCommand verifies the module exists in ModuleList (module-centric model).
3. If adding/updating:
   • Parses pairs into Map<String,Integer>.
   • Updates the module’s in-memory scoreBreakdown
   • Persists via ScoreManager, which writes the full map to disk using ScoreStorage.
4. If querying:
   • Reads from the module if present; otherwise tries ScoreManager to hydrate and display.

Rating Feature

The rating feature allows users to rate modules they’ve taken and view the average rating for each module.

How it works:

1. Parser creates a RateCommand when the user enters rate <MODULE_CODE> [RATING]
2. If rating value (1-5) is provided:
   • RateCommand validates that the course exists in CourseRecord
   • The rating is then passed to RatingManager, which updates the total and count
   • RatingStorage saves the updated data to a file (data/ratings.txt)
3. If no rating is provided:
   • RateCommand retrieves the average rating and rating count from RatingManager`
   • Displays the average if ratings exist, or a message if none are found
4. The UI displays a confirmation or the average rating result to the user

Timetable Clash Detection

When adding a new module, the system checks for scheduling conflicts:

1. ModuleList iterates through all existing modules on the same day
2. For each module, it compares time ranges using checkOverlap()
3. Time strings are parsed into LocalTime objects for accurate comparison
4. Two time ranges overlap if: !(end1 < start2) AND !(end2 < start1)
5. If an overlap is found, that module is returned as the clashing module

This prevents students from accidentally scheduling multiple classes at the same time.

Product scope

Target user profile

Uniflow is designed for university students who:

• Need to manage multiple course modules and sessions (lectures, tutorials, labs)
• Want to track their academic performance and calculate GPA
• Prefer command-line interfaces for quick data entry
• Need to avoid timetable clashes when planning their schedule
• Want to access and share course reviews with peers
• Want to rate courses and see average ratings to inform module selection
• Are comfortable typing commands and structured input formats

Value proposition

Uniflow solves several problems for university students:

Timetable Management: Students can quickly add modules with specific time slots and session types, with automatic clash detection to prevent scheduling conflicts.

Academic Tracking: The application allows students to record completed courses with grades and automatically calculates cumulative GPA, helping them monitor academic progress.

Module Organization: Students can filter and search modules by various criteria (day, session type, module code, name), making it easy to find specific classes or plan study schedules.

Peer Reviews: The review system enables students to share and read course experiences, helping with module selection decisions.

Score Breakdown: Students can store and retrieve component scores for transparency on assessment structure.

Course Ratings: A lightweight rating system that lets students rate modules and view average ratings, providing a quick and quantitative signal alongside reviews.

Efficiency: Command-line interface allows for faster data entry compared to GUI applications, ideal for students who need to quickly update their schedules between classes.

User Stories

Version	As a …	I want to …	So that I can …
v1.0	new user	see usage instructions	refer to them when I forget how to use the application
v1.0	student	add modules to my timetable	keep track of all my classes
v1.0	student	delete modules from my timetable	remove classes I’ve dropped
v1.0	student	list all my modules	see my complete schedule at a glance
v1.0	student	check for timetable clashes	avoid scheduling conflicts
v2.0	student	filter modules by day	see what classes I have on specific days
v2.0	student	filter modules by session type	quickly find all my tutorials or labs
v2.0	student	search modules by code or name	locate specific modules without scanning the entire list
v2.0	student	add my grades for completed courses	maintain an academic record
v2.0	student	add predicted grades for courses	manage expectations for courses
v2.0	student	calculate my GPA automatically	track my academic performance
v2.0	student	calculate my Major GPA automatically	track my academic performance with clearer picture
v2.0	student	calculate my projected GPA	manage and set strategy for studying
v2.0	student	store score breakdowns for modules	track individual assessment components
v2.0	student	add reviews for courses	share my experiences with other students
v2.0	student	read reviews for courses	make informed decisions about module selection
v2.0	student	reset my timetable	start fresh for a new semester
v2.0	student	rate a course	share simple feedback on module quality
v2.0	student	search for reviews by user	see all feedback from a specific person
v2.0	student	search for reviews by user & course	find a specific person’s review for a course
v2.0	(dev)	manually reload reviews from file	test persistence without restarting the app
v2.0	(dev)	reset all reviews	clear the in-memory state for testing (without affecting the file)
v2.1	(student)	view all scores for a module	review performance breakdowns across assessments
v2.1	(student)	update component scores for a module	correct mistakes or refine ongoing assessments
v2.1	(student)	view the average rating for a module	decide which modules to take next semester
v2.1	student	be prompted to save reviews on exit	not lose work if user forget to save manually
v2.1	student	count reviews for a course	see how many reviews a course has
v2.1	student	show/remove grades of the record	have more organised record and better management of academic progress
v2.1	(dev)	manually merge reviews to disk	save user progress without exiting or reloading

Non-Functional Requirements

1. Usability: Commands should be intuitive and follow consistent patterns. Error messages must be clear and guide users toward correct usage.

2. Performance: The application should respond to commands instantly (< 100ms) for typical operations with up to 50 modules.

3. Reliability: Data persistence for reviews is user-controlled. The ExitSaveManager prompts the user to save unsaved changes on graceful exit (bye) to prevent data loss.

4. Portability: The application should run on any system with Java 11 or higher installed (Windows, macOS, Linux).

5. Maintainability: Code should follow object-oriented principles with clear separation of concerns. Each command class should be independent and easily modifiable.

6. Data Integrity: Grade point calculations must be accurate. Invalid grades should be rejected. For review data, the ReviewCleaner component ensures corrupted or incomplete entries are automatically removed from the data file to prevent loading invalid data.

7. Scalability: The filtering mechanism should handle multiple filter criteria efficiently using predicate-based filtering.

Glossary

• Module - A university course or subject with scheduled sessions.
• Session Type - The type of class session (lecture, tutorial, lab, etc.)
• Timetable Clash - When two modules are scheduled at overlapping times on the same day.
• Course Record - Collection of completed courses with grades for GPA calculation.
• GPA - Grade Point Average, calculated from course grades and credits.
• Major GPA - Grade Point Average that only accounts for major-required courses. Used by many universities as a graduation requirement.
• Score Breakdown - Individual assessment components and their weightings for a module.
• ScoreManager - Manages creation, updating, and retrieval of score breakdowns for each module.
• ScoreStorage - Handles the persistence of score breakdown data to file and ensures integrity between sessions.
• Review - Student feedback and experiences shared about a specific course.
• ReviewManager - Handles in-memory management of reviews (adding, editing, finding, deleting).
• ReviewStorage - Reads and writes all review data to persistent storage.
• ExitSaveManager - A component that detects unsaved reviews on exit and prompts the user to save them.
• RAM-First - An architecture model where data is modified in memory and only saved to persistent storage on explicit user action.
• Rating - Numerical evaluation of a course’s quality, used to compute average ratings displayed to students.
• RatingManager - Manages ratings per module, tracking total ratings, count, and computing the average.
• RatingStorage - Persists rating data between sessions and reconstructs module ratings on load.

Instructions for manual testing

Setting up the application

1. Ensure you have Java 11 or higher installed on your system
2. Download the Uniflow.jar file
3. Open a terminal/command prompt and navigate to the directory containing the jar file
4. Run the application: java -jar Uniflow.jar

Testing Module Management

Adding modules:

insert i/CS2113 n/Software Engineering d/Monday f/14:00 t/16:00 s/lecture
insert i/CS2113 n/Software Engineering d/Tuesday f/10:00 t/11:00 s/tutorial
insert i/MA1521 n/Calculus d/Wednesday f/09:00 t/11:00 s/lecture

Expected: Each module is added with confirmation message showing module count.

Testing clash detection:

insert i/ST2334 n/Statistics d/Monday f/15:00 t/17:00 s/lecture

Expected: Warning about clash with CS2113 on Monday. Application prompts for confirmation.

Listing modules:

list

Expected: All added modules displayed with their details.

Deleting modules:

delete index/1

Expected: Module at index 1 of the timetable removed. Confirmation message shows remaining module count.

Testing Filtering

Filter by day:

filter day/Monday

Expected: Shows only modules scheduled on Monday.

Filter by session type:

filter type/tutorial

Expected: Shows only tutorial sessions.

Filter modules with tutorials:

filter hastutorial

Expected: Shows modules that have tutorial sessions.

Filter by module code:

filter id/CS

Expected: Shows all modules with “CS” in their code.

Testing Grade Management

Adding grades:

addgrade c/CS2113 cr/4 g/A m/true
addgrade c/MA1521 cr/4 g/B+ m/true
addgrade c/ST2334 cr/4 g/A- m/true

Expected: Each course is added to academic record with confirmation.

Computing GPA:

gpa

Expected: Displays total courses studied, total grade points, total credits studied, and calculated GPA (for both all courses and major required GPA).

Testing invalid grade:

addgrade c/CS1010 cr/4 g/Z m/true

Expected: Error message about invalid grade.

Testing invalid IsMajor:

addgrade c/CS1010 cr/4 g/Z m/test

Expected: Error message that reminds users to input true/false.

Testing missing components:

addgrade c/CS1010 g/Z m/test

Expected: Error message that reminds users to follow the correct format.

Testing invalid index for removegrade:

removegrade -1

Expected: Error message that reminds users to enter a valid index.

Testing Storage:

1. Add a grade to the permanent course record using the command addgrade.
2. Exit Uniflow.
3. Run Uniflow again.
4. Type the command showgrade.
5. The previously added grade should appear on the list.

Testing Score Breakdown

Adding score breakdown:

score CS2113 exam:50 project:30 participation:20

Expected: Confirmation that breakdown is saved for CS2113.

Viewing score breakdown:

score CS2113

Expected: Show the score breakdown saved for CS2113.

Testing invalid breakdown format:

score CS2113 exam:fifty

Expected: Error message about invalid format.

Testing Review System

Adding reviews (in-memory):

addreview c/CS2113 u/Alice r/Great course, very practical!
addreview c/CS2113 u/Bob r/Challenging but rewarding

Expected: Confirmation that reviews are added (to memory).

Viewing reviews (from memory):

review CS2113

Expected: Both reviews displayed with usernames.

Viewing non-existent course:

review CS9999

Expected: Message indicating no reviews found.

Testing Find Review:

findreview u/Alice

Expected: Shows only the review from Alice (Great course, very practical!).

findreview u/Bob c/CS2113

Expected: Shows only Bob’s review for CS2113.

findreview u/NonExistentUser

Expected: Message indicating no reviews found for this user.

Testing Count Reviews:

amount reviews c/CS2113

Expected: Message showing the count of reviews for CS2113 (e.g., “Course CS2113 has 2 review(s).”).

Testing Review Data Management (Reload/Reset)

Test 1: Resetting memory First, add a new review to memory:

addreview c/TEST101 u/Tester r/Hello

Expected: Confirmation that review is added.

reset all reviews

Expected: All reviews have been cleared from memory.

review TEST101

Expected: No reviews found.

Test 2: Reloading from file, run the load command

load reviews

Expected: All reviews successfully reloaded from file.

review CS2113

Expected: Shows default reviews from file.

Testing Rating System

Adding a rating

rate CS2113 4

Expected: Message confirming that the rating has been added. Viewing Average Rating

rate CS2113

Expected: Displays the average rating and number of ratings per course.

Testing Timetable Commands

Show timetable:

show timetable

Expected: All modules displayed with index numbers.

Reset timetable:

reset timetable

Expected: Confirmation that timetable is cleared. Subsequent list should show empty timetable.

Testing Error Handling

Empty command:

(press Enter without typing anything)

Expected: Error message about empty command.

Invalid command:

xyz

Expected: Error message about invalid command.

Missing parameters:

insert i/CS2113

Expected: Error about missing fields.

Data Persistence Testing

1. Add several reviews using addreview commands
2. Exit the application with bye
3. Restart the application
4. Use review command to verify reviews are loaded

5. Check that data/reviews.txt file exists and contains review data in format: course

   user

   review

↑ Back to top
